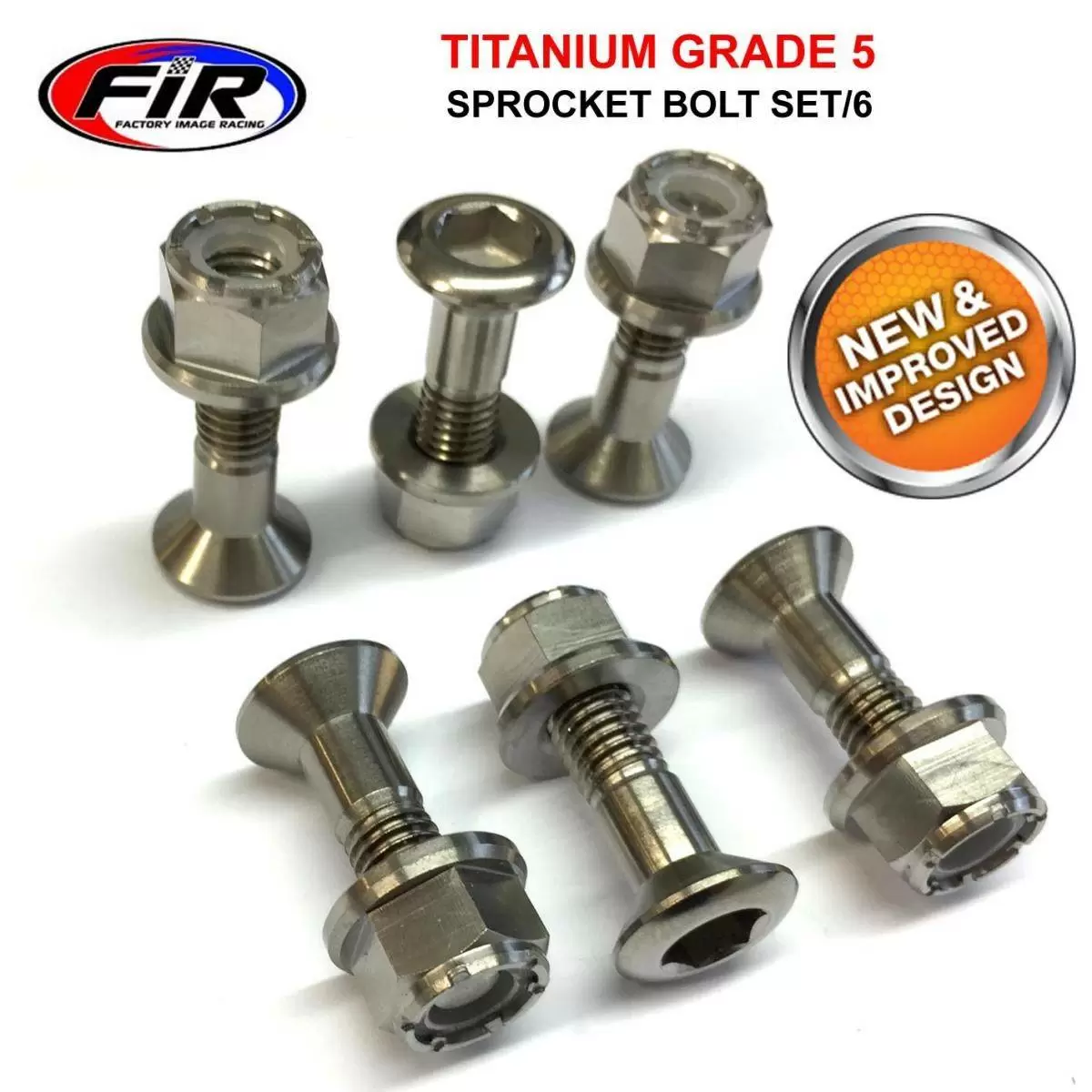

FIR Titanium Sprocket Bolts – Set 6

Titanium GR5 Sprocket Bolt Set 6, M8x30 Standard Sprocket Bolts. Introducing the Titanium GR5 Sprocket Bolt Set 6 from Factory Image Racing (FIR). Engineered to perfection, these high-quality bolts are designed to provide exceptional performance and reliability.

Constructed from Grade 5 (6Al/4V) titanium material, these bolts offer superior strength and durability. With a thread diameter of M8 and a pitch of 1.25mm, they are perfectly suited for various applications.

The bolt set includes 6 bolts, each with an overall length of 31.50mm and a countersunk head length of 6.00mm. The shank length of 10.00mm and thread length of 15.00mm ensure a secure and precise fit. Utilizing an 8mm Allen key, these bolts are easy to install and tighten to the desired torque.

Accompanying the bolts are 6 nuts, also made from Grade 5 titanium. With a thread diameter of M8 and a pitch of 1.25mm, these nuts ensure a reliable and secure connection. They feature an overall height of 10.50mm and a flange outer diameter of 17.00mm. The 13mm hex head allows for easy tightening using a standard spanner. Additionally, the nuts are equipped with a white nylon lock type for added safety and stability.

With the Titanium GR5 Sprocket Bolt Set 6, you can trust in the quality and performance of FIR products. These bolts and nuts are designed to withstand the demands of rigorous racing and provide a secure fastening solution for your sprockets. Upgrade your bike’s components with this premium bolt set and experience enhanced performance and reliability.

Please note that the bolts and nuts in this set are specifically designed for M8x30 standard sprocket bolts, ensuring compatibility and a perfect fit.

Bolt Information:

• Bolt Quantity: 6
• Material: Grade 5 (6Al/4V)
• Thread Diameter (D): M8
• Thread Pitch (P): 1.25mm
• Overall Length (L): 31.50mm
• Countersunk Head Length (L): 6.00mm
• Shank Length: 10.00mm
• Thread Length: 15.00mm
• Head Allen: 8mm Allen key

Nut Information:

• Nut Quantity: 6
• Material: Grade 5 (6Al/4V)
• Thread Diameter (D): M8
• Thread Pitch (P): 1.25mm
• Overall Height: 10.50mm
• Flange Outer Diameter (OD): 17.00mm
• Head HEX: 13mm Spanner Size
• Lock Type: White Nylon

Please note that the above information is for the Titanium GR5 Sprocket Bolt Set 6, specifically designed for use with M8x30 standard sprocket bolts.
